Apache

Apache HTTP Server is an open-source web server platform. It is one of the main components of The Uniform Server. Apache has been pre-configured to run as a local web server. There are several configuration options allowing the server to be accessed from an Intranet or the Internet. The Uniform Server Zero provides an easy-to-use control interface, UniController, allowing you to run servers as a standard program. UniController contains a menu specifically targeting Apache. From this menu you can put your server on-line, change ports or create a server certificate. This page covers all the menu options.

Change Apache ports

The "Change Apache ports" menu allows you to specify the Apache standard and secure ports. Two sub-menus "Change Apache port" and "Change Apache SSL port" are provided to set the standard and secure ports respectively:

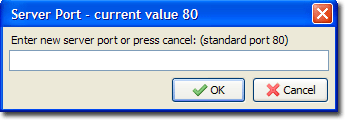

Change Apache port

Apache > Change Apache ports > Change Apache port

  • Current port setting is displayed.
  • Change the port to required value.
  • Click the corresponding Ok button.
Change Apache Port

Change Apache SSL port

Apache > Change Apache ports > Change Apache SSL port

  • Current port setting is displayed.
  • Change the port to required value.
  • Click the corresponding Ok button.
Change Apache Port

Note 1: For new port to become effective you must restart the servers.

General Notes:

The Uniform Server Zero XI sets port environment variables AP_PORT and AP_SSL_PORT and updates the user configuration file user_configuration.bat. Environment variables are used in the following Apache configuration files:

Apache standard port ${AP_PORT}

  • UniServerZ\core\apache2\conf\httpd.conf
  • UniServerZ\core\apache2\conf\extra\httpd-vhosts.conf

Apache ssl port ${AP_SSL_PORT}

  • UniServerZ\core\apache2\conf\extra\ssl.conf

Change Apache Root-folders

All public pages are served from a root folder; Uniform Server Zero XI default is folder UniServerZ\www (Note also known as htdocs in a Unix environment). This root folder is the main servers root folder, Vhosts have their own unique root folder not covered here.

The Uniform Server has a predefined folder (ssl root folder) that is reserved for https access. Secure pages are pages served from this root folder.

Apache menu "Change Apache Root-folders" provides two sub-menus "Select new server Root-Folder (www)" and "Select new server Root-Folder (ssl)" for assigning a new folder to the main root folder and secure root folder respectively.

Select new server Root-Folder (www)

Apache > Change Apache Root-folders > Select new server Root-Folder (www)

  • Opens "Brows for Folder" dialog window. The current root folder is high lighted.
  • Navigate to required new root folder. Note For a portable server ensure the root folder is below the main folder UniServerZ.
  • Highlight the required folder by clicking on it.
  • Click OK button. A confirmation pop-up is displayed.

Select new server Root-Folder (ssl)

Apache > Change Apache Root-folders > Select new server Root-Folder (ssl)

  • Opens "Brows for Folder" dialog window. The current root folder is high lighted.
  • Navigate to required new root folder. Note For a portable server ensure the root folder is below the main folder UniServerZ.
  • Highlight the required folder by clicking on it.
  • Click OK button. A confirmation pop-up is displayed.

Note 1: For a new root folder to become effective you must restart the servers.

Note 2: The root path of a selected folder is internally stored either in a absolute or relative format.
Full menu details; see Document root paths (Absolute vs Relative) page.

Edit Configuration Files

Edit httpd.conf

Apache > Edit Configuration Files > Edit httpd.conf

Opens the configuration file in notepad, allowing you to directly edit the file.
File: UniServerZ\core\apache2\conf\httpd.conf

Edit httpd-ssl.conf

Apache > Edit Configuration Files > Edit httpd-ssl.conf

Opens the configuration file in notepad, allowing you to directly edit the file.
File: UniServerZ\core\apache2\conf\extra\httpd-ssl.conf

Edit Basic and Modules

Edit Basic Configuration

This menu allows you to change commonly configured Apache options.
Note: Full menu details; see Apache basic configuration page.

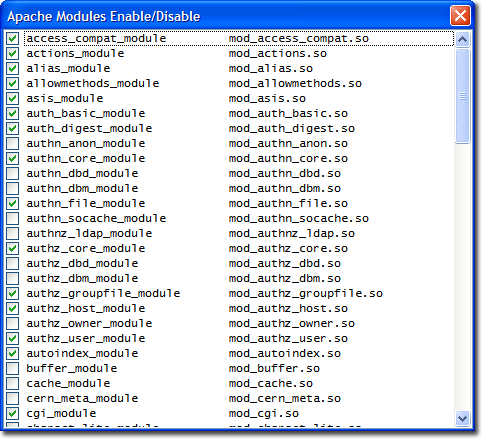

Apache Modules Enable/Disable

This menu allows you to enable or disable Apache Modules.

NOTE: improper use can totally disable your server! Be sure you know what a module does before you enable or disable it.

Apache > Edit Basic and Modules > Apache Modules Enable/Disable

  • If checkbox is unchecked: Module disabled
  • If checkbox is checked: Module enabled

Note: After changing state you must restart the Apache server for the new configuration to be recognised.

This modifies the file
UniServerZ\core\apache2\conf\httpd.conf

Apache modules enable disable

Access and Passwords

How to put the servers on-line for public or intranet access and optionally restrict access using a name and password is covered in details on the following pages:

Note: Both menu options require a .htaccess file in the root folder. If this file does not exist; user is informed accordingly and given the option to create one.

Apache SSL

Secure Sockets Layer (SSL) offers privacy for client-server communication. SSL establishes an encrypted tunnel using cryptography algorithms and keys through which other protocols such as HTTP are transported.

By default, The Uniform Server Zero XI installation has SSL disabled, for the reason of security. A certificate/key pair are required and must be unique to the particular server. After creating a new server certificate/key pair, SSL is automatically enabled in Apache's configuration file.

Server Certificate and Key generator

Apache > Apache SSL > Server Certificate and Key generator

Creating a Server Certificate and Key has been split and covered in detail on the following three pages:

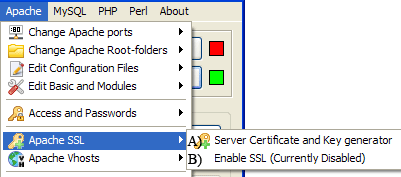

Enable SSL

Apache > Apache SSL > Enable SSL (Currently Disabled)

After creating a self-signed certificate SSL is automatically enabled. However for testing you may wish to temporally disable ssl this sub-menu allows you to toggle ssl on and off.

  • B) Menu option toggles between:
    • Enable SSL (Currently Disabled)
    • Disable SSL (Currently Enabled)

After changing state the Apache server must be restarted.

Apache SSL Enable/Disablemodules enable disable

Apache Vhosts

The Uniform Server Zero XI is configured for name-based virtual hosting. This allows you to run any number of web sites from a single IP address.

Create Apache Vhost:

This sub-menu allows you to quickly create a virtual host.

Apache > Apache Vhosts > Create Apache Vhost

Creating a Vhost requires only two form entries, a server root folder and a host name. If the root folder does not exist clicking the Create Vhost button creates it in the main vhosts folder UniServerZ\vhosts. A Vhost section is created in the Vhost configuration file (httpd-vhosts.conf), an entry is written UniServer's PAC file and a IP address domain name pair is written to the Windows host file if this option is enabled. A .htaccess and favicon.ico file are created in the new root folder. Here is a summary of the steps:

  • A) Enter a folder name you wish to use as your server root folder.
  • B) Enter your server name (host name). This is the domain name you registered with a registrar, for example fred.com. It is the name you enter in a browser to access your web site (excluding the http:// part).
  • C) Click Create Vhost button to create your virtual host.

Note: For new configuration to be recognised you must restart your Apache server.

Create Vhost

Note: Internet access
The .htaccess file created in the new root folder restricts access to local host.
To allow others on the Internet to access your website this file requires
editing as shown on right:

Locate these lines:

Order Deny,Allow
Deny from all
Allow from 127.0.0.1
Allow from ::1

Comment out the lines as shown:

#Order Deny,Allow
#Deny from all
#Allow from 127.0.0.1
#Allow from ::1

Delete Apache Vhost:

This sub-menu allows you to quickly delete a virtual host.

Apache > Apache Vhosts > Delete Apache Vhost

  • A) From the list select a Vhost you wish to delete.
  • B) Click Delete Vhost button.
  • C) To cancel click Cancel Selection button.

Note: Deleting a Vhost does not delete its root folder this requires user confirmation. A pop-up is displayed informing user the Vhost was delete and to confirm if the root folder should be deleted.

Delete Vhost

Note 1: Deleting a Vhost removes its corresponding entry in UniServer's PAC file and PC hosts file.
Note 2: For detailed information see Apache Vhosts

Apache server Info - Status

These sub-menu options provide convenient short cuts that allow you to view the server status and other important information. They are shown along with a small extract of each file. Each menu option redirects your browser to the appropriate page. You can also type this address directly into your browser.

Apache server-info:
This sub-menu allows you to quickly view server information

Apache > Apache server Info - Status > Apache server information

Menu item URL: http://localhost/server-info

Server Settings
Server Version: Apache/2.4.6 (Win32) OpenSSL/1.0.1e PHP/5.4.19
Apache Lounge VC10 Server Built: Jul 16 2013 11:15:41
Server loaded APR Version: 1.4.8
Compiled with APR Version: 1.4.8
Server loaded APU Version: 1.5.2
Compiled with APU Version: 1.5.2
Module Magic Number: 20120211:23
Hostname/port: localhost:80
Timeouts: connection: 60    keep-alive: 5
MPM Name: WinNT
MPM Information: Max Daemons: 64 Threaded: yes Forked: no
Server Architecture: 32-bit

Apache server-status:
This sub-menu allows you to quickly view server status

Apache > Apache server Info - Status > Apache server status

Menu item URL: http://localhost/server-status

Apache Server Status for localhost (via 127.0.0.1)

Server Version: Apache/2.4.6 (Win32) OpenSSL/1.0.1e PHP/5.4.19
Server MPM: WinNT
Apache Lounge VC10 Server Built: Jul 16 2013 11:15:41


Current Time: Wednesday, 11-Sep-2013 11:15:52 GMT Daylight Time
Restart Time: Wednesday, 11-Sep-2013 11:15:24 GMT Daylight Time
Parent Server Config. Generation: 1
Parent Server MPM Generation: 0
Server uptime: 27 seconds
Server load: -1.00 -1.00 -1.00
Total accesses: 3 - Total Traffic: 16 kB
.111 requests/sec - 606 B/second - 5.3 kB/request
1 requests currently being processed, 149 idle workers

Apache Logs

The following sub-menu options provide convenient short cuts allowing you to view server log files. If you are experiencing problems with the server, these should be your first port of call; they may shed light on a particular issue.

Below are the paths to each log file along with a small extract:

View Apache Error Log:
This sub-menu allows you to quickly view server status

Apache > Apache Logs > View Apache Error Log

Location:UniServer\core\apache2\logs\error.log

[Sat Apr 13 22:50:54 2013] [notice] Apache/2.4.6 (Win32) OpenSSL/1.0.1e...
[Sat Apr 13 22:50:54 2013] [notice] Server built: VC10 Server built: ....
[Sat Apr 13 22:50:54 2013] [notice] Parent: Created child process 1028
[Sat Apr 13 22:50:55 2013] [notice] Child 1028: Child process is running
[Sat Apr 13 22:50:55 2013] [notice] Child 1028: Acquired the start mutex.
[Sat Apr 13 22:50:55 2013] [notice] Child 1028: Starting 250 worker threads.
[Sat Apr 13 22:50:55 2013] [notice] Child 1028: Starting thread to listen on port 443.
[Sat Apr 13 22:50:55 2013] [notice] Child 1028: Starting thread to listen on port 80.

View Apache Access Log:
This sub-menu allows you to quickly view server status

Apache > Apache Logs > View Apache Access Log

Location:UniServer\core\apache2\logs\access.log

127.0.0.1 - - [13/Apr/2013:22:51:00 ] "GET /index.php HTTP/1.1" 200 1108
127.0.0.1 - - [13/Apr/2013:22:51:00 ] "GET /us/index.php HTTP/1.1" 200 1405
127.0.0.1 - - [13/Apr/2013:22:51:01 ] "GET /us/css/style.css HTTP/1.1" 200 753
127.0.0.1 - - [13/Apr/2013:22:51:01 ] "GET /css/style.css HTTP/1.1" 200 732
127.0.0.1 - - [13/Apr/2013:22:51:01 ] "GET /images/padlock2.gif HTTP/1.1" 200 1144
127.0.0.1 - - [13/Apr/2013:22:51:01 ] "GET /us/images/logo.png HTTP/1.1" 200 27859
127.0.0.1 - - [13/Apr/2013:22:51:01 ] "GET /images/logo.png HTTP/1.1" 200 27859
127.0.0.1 - - [13/Apr/2013:22:51:02 ] "GET /images/branding_bg.png HTTP/1.1" 200 188
127.0.0.1 - - [13/Apr/2013:22:51:02 ] "GET /us/images/brand_bg.png HTTP/1.1" 200 188
127.0.0.1 - - [13/Apr/2013:22:51:02 ] "GET /favicon.ico HTTP/1.1" 200 584
127.0.0.1 - - [13/Apr/2013:22:51:19 ] "GET /us_phpmyadmin/index.php HTTP/1.1" 200 1054

View Apache SSL Error Log:
This sub-menu allows you to quickly view server status

Apache > Apache Logs > View Apache SSL Error Log

Location:UniServer\core\apache2\logs\error_ssl.log



[Sat Apr 13 22:50:55 2013] [warn] RSA server certificate CommonName (CN)
 'localhost123' does NOT match server name!?
[Sat Apr 13 22:50:55 2013] [warn] RSA server certificate CommonName (CN)
 'localhost123' does NOT match server name!?


View Apache SSL Access Log:
This sub-menu allows you to quickly view server status

Apache > Apache Logs > View Apache SSL Access Log

Location:UniServer\core\apache2\logs\access_ssl.log


127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET / HTTP/1.1" 200 758
127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET /css/style.css HTTP/1.1" 200 732
127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET /images/branding_bg.png HTTP/1.1" 200 188
127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET /images/padlock.gif HTTP/1.1" 200 1029
127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET /images/logo.png HTTP/1.1" 200 27859
127.0.0.1 - - [13/Apr/2013:22:51:49 ] "GET /favicon.ico HTTP/1.1" 200 584

Delete above logs:

This sub-menu allows you to quickly delete the above log files.

Apache > Apache Logs > Delete above logs

Note: Alternative to "Delete above logs" is to use Clean-up delete logs you can add additional files and folder content to delete.

Apache Syntax Check -t

The Apache Syntax Check menu button initiates a syntax check on Apache's configuration files.

Apache > Apache Syntax Check -t

The results are displayed in a pop-up message box. Any errors found require correction before the Apache server will start.
The check is equivalent to the following manual procedure:

  1. Start Server Console: - Opens a command window
  2. In the console window type: httpd_z.exe -t

Note: If you previously changed the Apache binary name use this name instead of httpd_z.exe in step 2.

Start-up pages

This menu option enables or disables displaying of two predefined pages at Apache start-up.
Sub-menu option "Dispaly pageN at start-up" toggles between displaying and not displaying pre-selected page at start-up
Sub-menu option "Select pageN to display" opens a file selection menu allowing you to select (redefine) a page to display.

Display page1 at start-up

Apache > Start-up pages > Display page1 at start-up

This toggle sub-menu enables or disables page1 display at
Apache server start-up.

Check marker indicates option selected and display page at start-up.

Select page1 to display

Apache > Start-up pages > Select page1 to display

This sub-menu item opens a file select dialog.
Select a web-page to display at Apache server start-up.

  • Note: Selection is restricted to server-root folders
    and aliased folders mapped in Apache server.
  • Default: splash page (folder home)

Display page2 at start-up

Apache > Start-up pages > Display page2 at start-up

This toggle sub-menu enables or disables page2 display at
Apache server start-up.

Check marker indicates option selected and display page at start-up.

Select page2 to display

Apache > Start-up pages > Select page2 to display

This sub-menu item opens a file select dialog.
Select a web-page to display at Apache server start-up.

  • Note: Selection is restricted to server-root folders
    and aliased folders mapped in Apache server.
  • Default: index.php (root-folder www)

Note:

If not already running the default browser is automatically started and an enabled page is displayed.
Alternatively if portable browsers module installed and not already running is automatically started and an enabled page is displayed.


--oOo--
